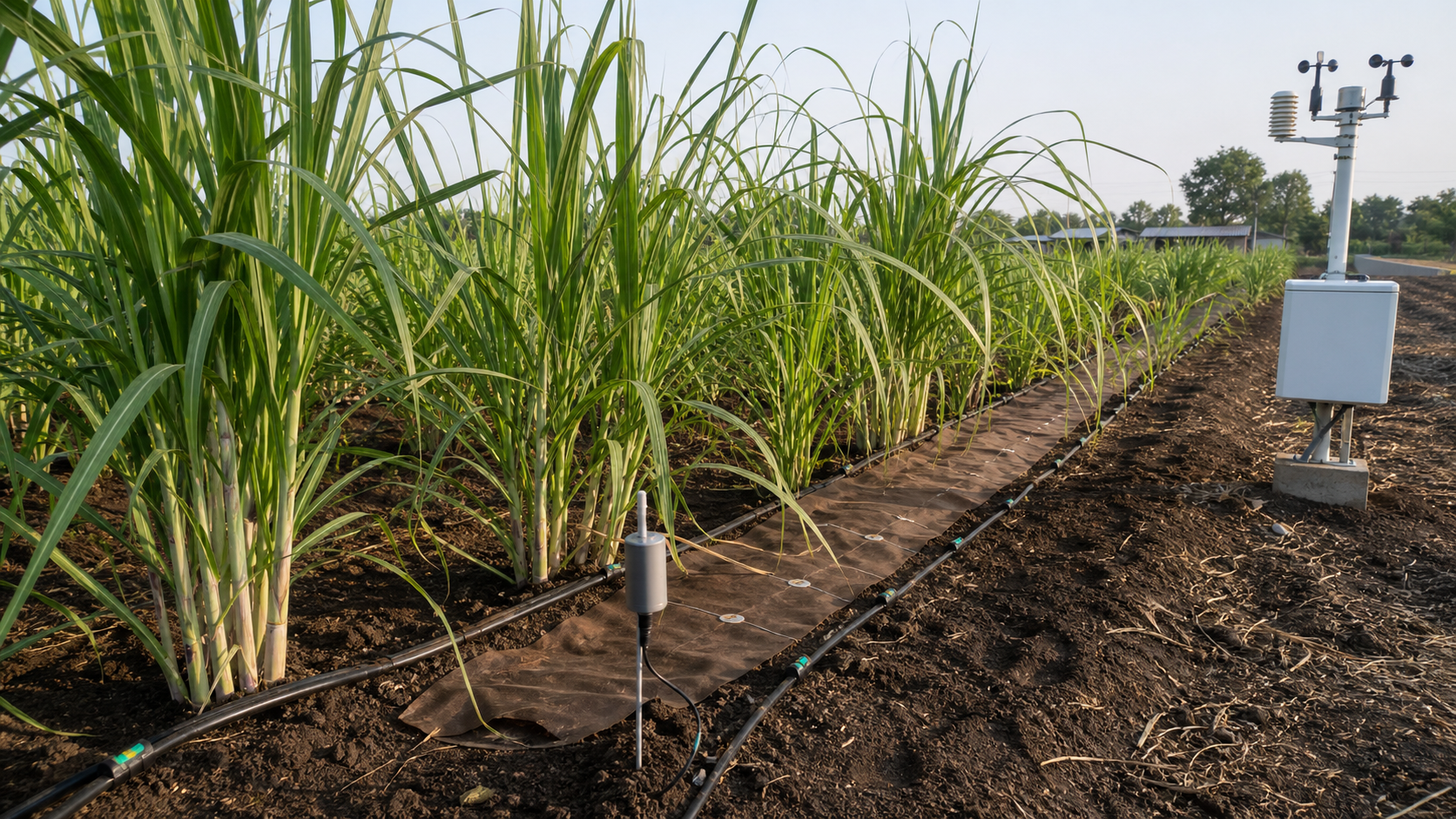

Concept visualization of instrumented sugarcane research plot

CONCEPT VISUAL / NOT FIELD EVIDENCE

The field becomes a measurable product system.

Real crop operations, serviceable hardware, instrumented treatments and a digital thread from observation to approved work.
ACTIVE CROPSugarcanePhysical-first reference
FIELD AREA1.00 acreConfiguration estimate
PLANTING SITES17,424Geometry estimate
CONTROL STATEAdvisoryHuman approval required

FIELD CONFIGURATION

Configure the physical reference.

Values are planning inputs, not surveyed truth.

SYSTEM READINESS

NEXT CONTROLLED ACTION

Qualify the field before installing hardware.

  1. Record water, power, radio and drainage.
  2. Issue plot and sample identities.
  3. Approve treatment-control geometry.
  4. Release only the Tier A bench BOM.

SCIENTIFIC 3D + TIME

The preserved field twin remains the simulation core.

Orbit above and below the soil, inspect roots and treatments, change crop, soil, weather and time, then expose the complete water account.
V2 scientific engine / connected as the simulation surface for Product Generation V3Open full-screen twin
MODELFAO-56 reference ET, three soil layers, crop state and exposed residuals.
INTERACTIONOrbit, zoom, canopy, system and root-zone views with clickable components.
SCENARIOSRain, irrigation, heat, hydrogel, biochar, mulch and five crop forms.
BOUNDARYEvery value remains simulated until calibrated Solapur field evidence replaces it.

ISM-100 + IMS-100

Intelligent Soil is a measured treatment system.

Biodegradable sheet, passive printed sensing, reusable edge electronics and removable calibrated probes.
IMS-100 architecture

TREATMENT CONFIGURATOR

TREATMENT IDM1-H0-B0-D1

PHYSICAL PRODUCT / PHASE I REFERENCE DESIGN

Build one traceable system, not a collection of gadgets.

Select a package to open its engineering process, release evidence and controlled source documents.
AFL-100

Field Lander

Multi-depth soil probes, protected ESP32-class acquisition, LoRa link and local sequence buffer.

₹15k-₹45k
ABS-100

Base Station

Raspberry Pi-class edge host, local MQTT, evidence store, replay and operator console.

₹18k-₹35k
AFM-100

Fluid Module

Flow, pressure and tank sensing with isolated actuation, manual override and emergency stop.

₹12k-₹35k
IMS-100

Instrumented Mulch

Biodegradable test coupons, passive traces, reusable edge pod and removable calibrated probes.

₹8k-₹25k
APS-100

Plant Sight

Fixed camera reference, controlled capture, original-image hashing and local evidence transfer.

₹5k-₹18k
REFERENCE

Tools + Spares

Gravimetric standards, multimeter, pressure reference, enclosures, connectors and replacement stock.

₹12k-₹35k

PLANNING RANGE

₹70k-₹193kBefore tax, shipping, fabrication, labour and contingency. Supplier quotations are required before purchase.
  1. Freeze interfaces and safety limits.
  2. Release only the Tier A bench BOM.
  3. Receive by serial number and photograph.
  4. Calibrate before integration.
  5. Run dry, wet and 24-hour soak tests.
Read engineering hypertextbookOpen 31-page dossierOpen machine-readable BOM
POWER12 V DC distribution with fused branches; mains remains isolated and certified.NO FIELD ENERGIZATION
HYDRAULICManual isolation, pressure relief, bounded runtime and leak detection.WET-BENCH FIRST
RADIOLow-rate telemetry only; images stay on Wi-Fi/Ethernet/local storage.INTERFACE CONTROLLED
MULCHNo buried battery or disposable radio; electronics remain recoverable.COUPON TEST FIRST

PHYSICAL WORKFLOW

Planting through harvest, as evidence.

Every operation carries people, machinery, inputs, cost, approval and completion records.

SOIL-TEST DECISION CHAIN

Transparent fertilizer product conversion.

This tool converts an approved nutrient target into product mass. It does not prescribe the nutrient target.

CALCULATED PRODUCT MASS

IncompleteAttach soil/lab evidence and enter every required field.
R × (1 - C) ÷ (E × G)
Field + crop→Lab / SHC→Regional source→Product conversion→Agronomist approval→Work order

PROVENANCE FIRST

Market observations, never invented prices.

AGMARKNET/data.gov.in, e-NAM and controlled buyer quotes connect through adapters with source, market, date and unit.
AGMARKNET / OGDDaily mandi min, modal and maxREGISTRATION / API CONFIG REQUIRED
e-NAMOfficial live and historical trading contextADAPTER REVIEW REQUIRED
Buyer quotePrivate offer with evidence attachmentREADY FOR CONTROLLED ENTRY

MARKET TABLE

No current observation loaded.

Connect an approved adapter or import a captured official response. The system will not generate sample prices.

APS-100 / REAL IMAGE EVIDENCE

CNN is the last step, not the first.

Acquire, hash, de-duplicate, label, split by farm/season, validate, calibrate and allow the model to abstain.
01

Acquire

Original image, time, plot, crop, stage, camera and context.

02

Quality

Blur, exposure, occlusion and duplicate controls.

03

Annotate

Expert label, region, confidence and disagreement.

04

Hold out

Complete farms, seasons and image bursts stay together.

05

Model

Segmentation, counting and symptom localization first.

06

Abstain

Uncertain or shifted inputs become inspection tasks.

PHASE I DATASET

500-1,000 real images

Quality-controlled treatment/control imagery with hashes, metadata, annotation guide and leakage report.

PROHIBITED CLAIM

No automatic disease diagnosis

Until per-class held-out field performance and expert review pass, output remains visual anomaly triage.

30-DAY PHASE I

One integrated bench. A field-ready package.

The work is sequenced by evidence gates, not presentation dates.
WEEK 01

Define + procure

Requirements, site, sampling, interfaces, hazards and Tier A release.

7 deliverables
WEEK 02

Sense + edge

Serialised lander/base pair, calibration and 24-hour telemetry soak.

4 acceptance records
WEEK 03

Water + mulch

Safe wet bench, IMS coupon, reusable pod and operation ledger.

5 hardware tests
WEEK 04

Integrate + release

Twin, nutrient/market adapters, image pipeline and independent review.

Day-30 decision
G0ArchitectureDESIGN CONTROLLED
G1Sensing pathBENCH TARGET
G2Integrated benchDAY 30
G3Microplot entryAPPROVAL REQUIRED
G4Field validation120 DAYS+

AFS-100

Production record
